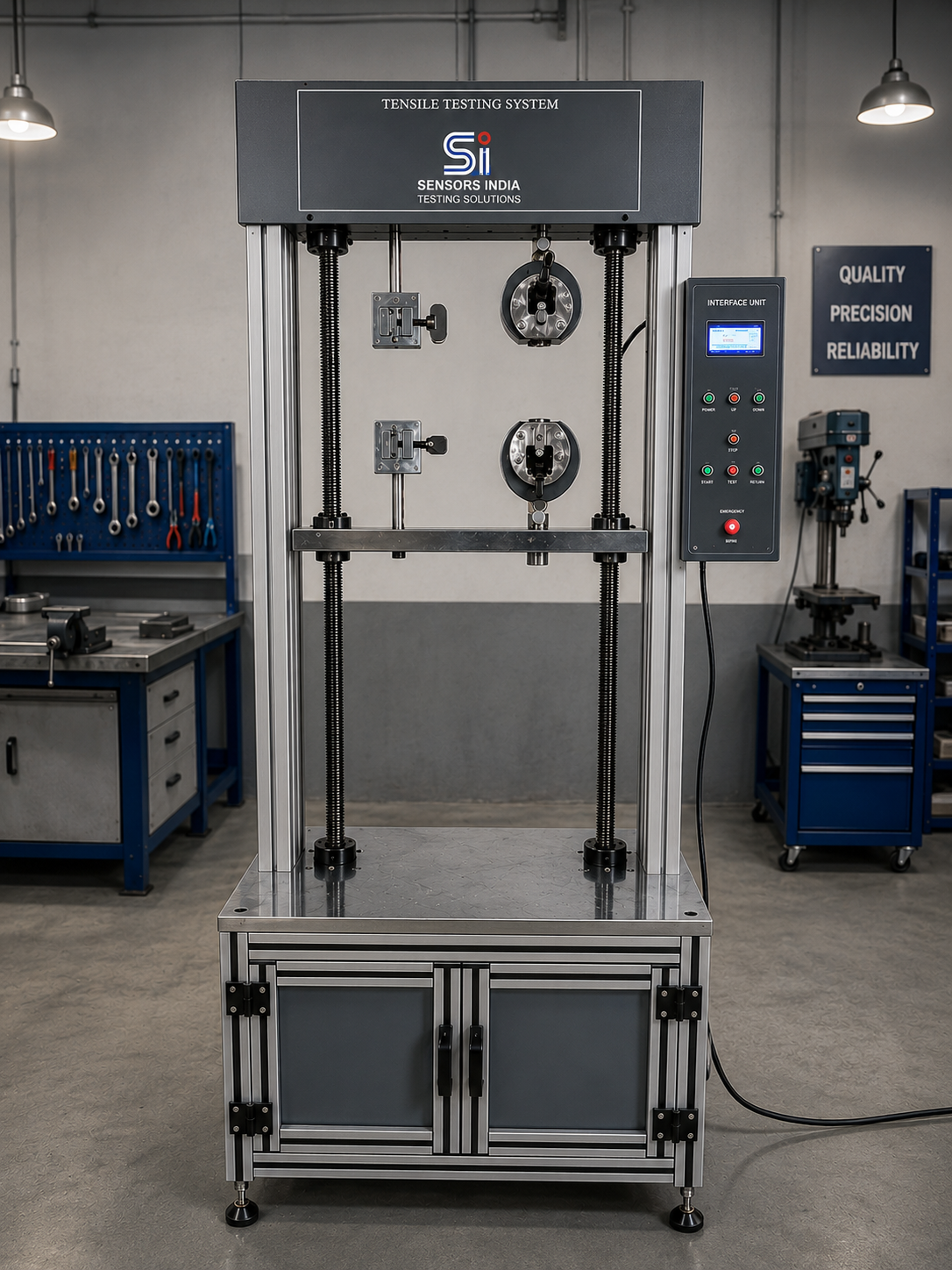

The Tensile Test System is designed for accurate and reliable testing of materials, ensuring compliance with industry standards. This system measures the tensile strength of metal and plastic specimens with high precision.

Technical Specifications:

✅ Capacity: As per customer requirements
✅ Measurement Ranges: As per customer requirements
✅ Accuracy: Within ±1% (between 10% & 90% of scale)
✅ Traverse Speed:

• Standard: 20 mm/min
• Adjustable: 1-500 mm/min (±50 mm/min)

✅ Grip Separation:

• Minimum: 20 mm
• Maximum: 500 mm

✅ Grips & Holding Capacity:

• Metal Specimens:
  • Grip Type: Self-tightening
  • Holding Capacity: Wires up to 10 mm diameter, Flats up to 20 mm width
• Plastic Specimens:
  • Grip Type: Self-tightening with exocentric roller
  • Holding Capacity: Specimens up to 30 mm width

✅ Power Requirements:

• Single Phase: 220V, 50Hz AC
• Three Phase: 415V

✅ Safety Features:

• Over-travel Protection: Limit switches for top and bottom positions

✅ Indicators & Controls:

• ON/OFF, UP/DOWN Mains Indicators
• Elongation Scale for precise measurement
